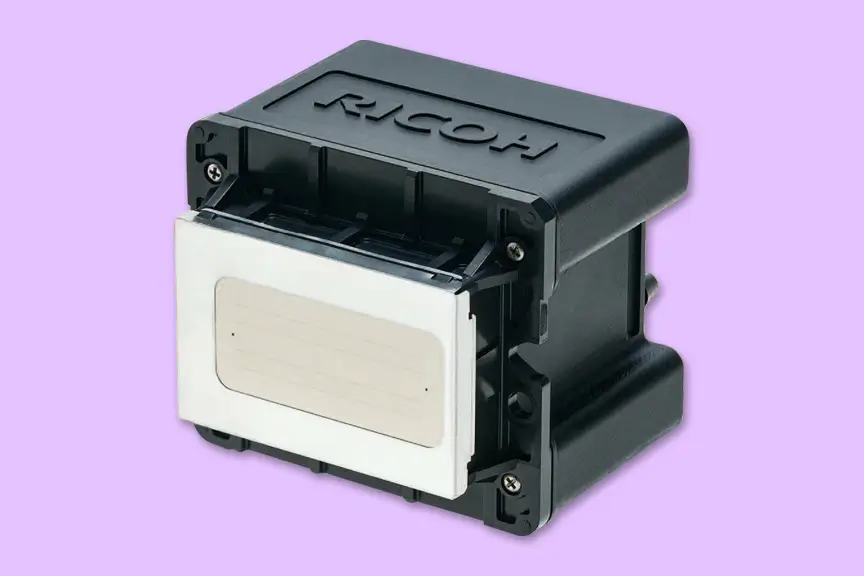

Ricoh Gen5i MH5420 UV Printhead
Original price was: 1.00৳ .0.00৳ Current price is: 0.00৳ .
Method: Thin-film piezoelectric transducer with bend mode
Print Width: 27.1 mm (1.06″)
Number of Nozzles: 1,280 (320 nozzles/row × 4 rows, staggered)
Nozzle Resolution: 600 npi (2 colors, 1 color), 300 npi (4 colors)
Max. Number of Color Inks: 4 colors
Jetting Frequency: 40 kHz (2 levels), 24 kHz (4 levels)
Drop Volume: 3 pL (single drop), 3–12 pL (multi-drop, max 21 pL)
Ink Compatibility: UV, solvent, aqueous, and other inks
Viscosity Range: 7 mPa·s
Ricoh has launched a new industrial inkjet print head, the RICOH TH5241, which is the first Ricoh print head to use a thin-film piezoelectric actuator (PZT). The RICOH TH5241 printhead belongs to the RICOH TH industrial inkjet printhead series. The Gen5i printhead uses MEMS technology and Ricoh’s unique design to become a compact printhead with 320×4 lines and a total of 1280 nozzles, with a printing resolution of up to 1200 dpi.
Because the ink channels for each nozzle row are isolated, a single printhead can spray up to four colors of ink. The printhead is compatible with all types of inks, including UV and water-based inks, and can be used in a variety of industrial applications such as logo graphics, textiles, and labels.
