Kyocera KJ4A-0300 UV Printhead
Original price was: 1.00৳ .0.00৳ Current price is: 0.00৳ .
Series: Kyocera KJ4A
Model: KJ4A-0300
Ink Compatibility: UV-curable ink (high-viscosity)
Nozzle Configuration: Dual channel (2 × 1,328 nozzles)
Total Nozzles: 2,656
Standard Resolution: 300 × 300 dpi
Effective Print Width: ≈112.35 mm
Max. Drive Frequency: 30 kHz
Droplet Volumes: ~4 pL, 6 pL, 10 pL, 14 pL
Maximum Print Speed: Up to ≈158 m/min (dependent on setup)
Typical Ink Viscosity: ≈7.0 – 7.5 mPa·s
Dimensions (W × D × H): ≈200 × 36 × ≈61.4 mm
Dry Weight: ≈540 g
Country of Origin: Japan
Typical Applications: Sign graphics, packaging, industrial UV printing

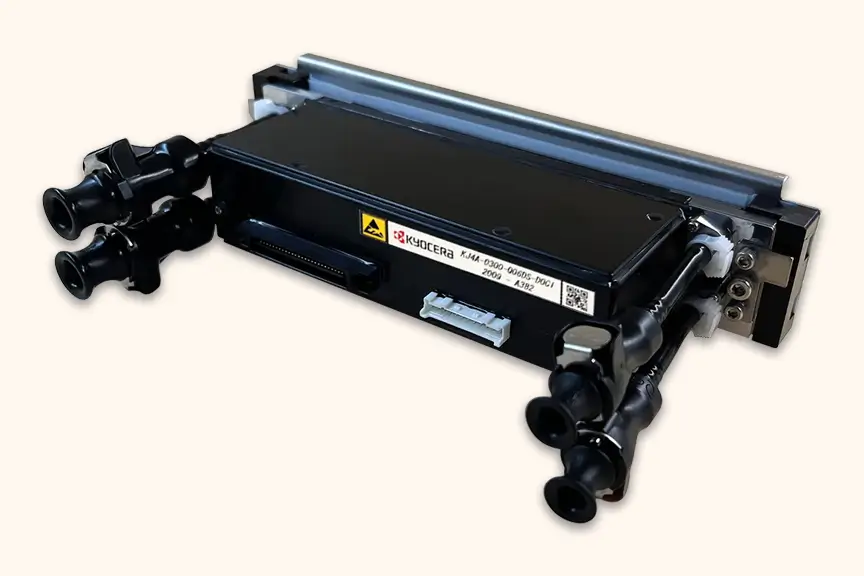

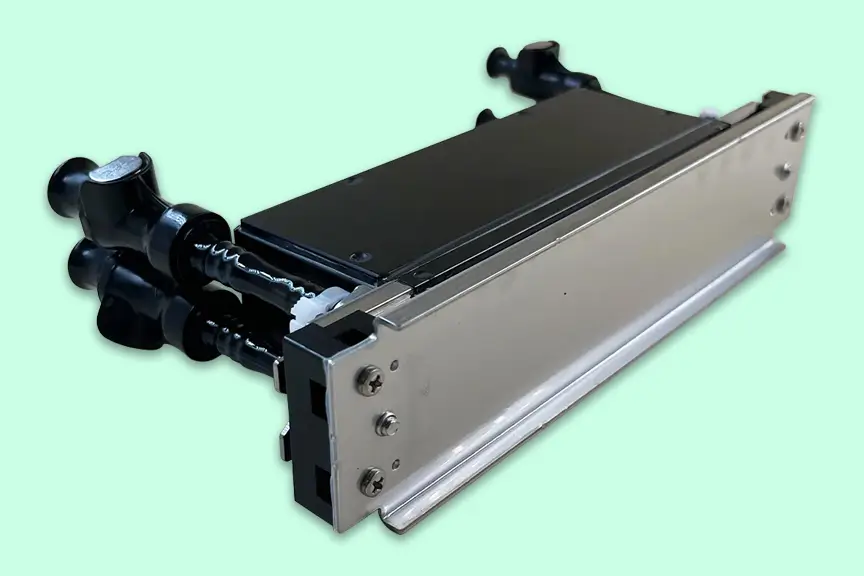

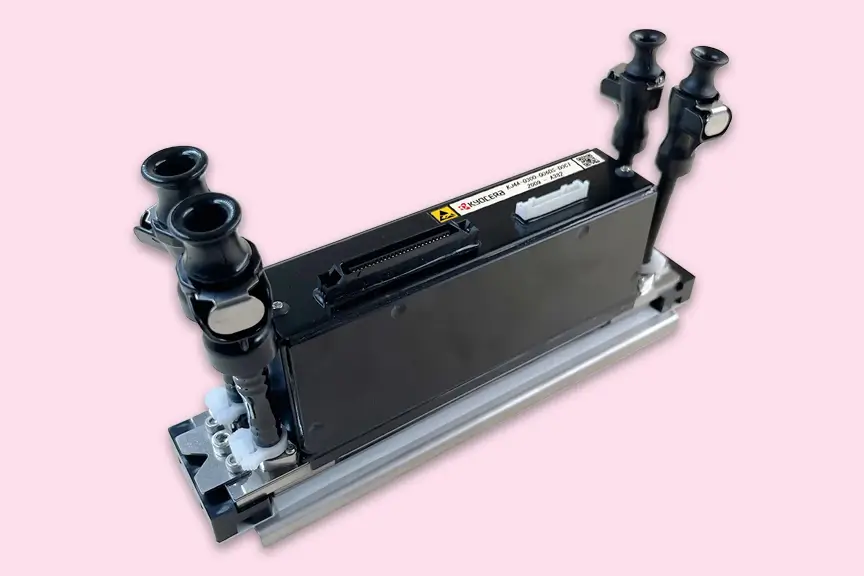

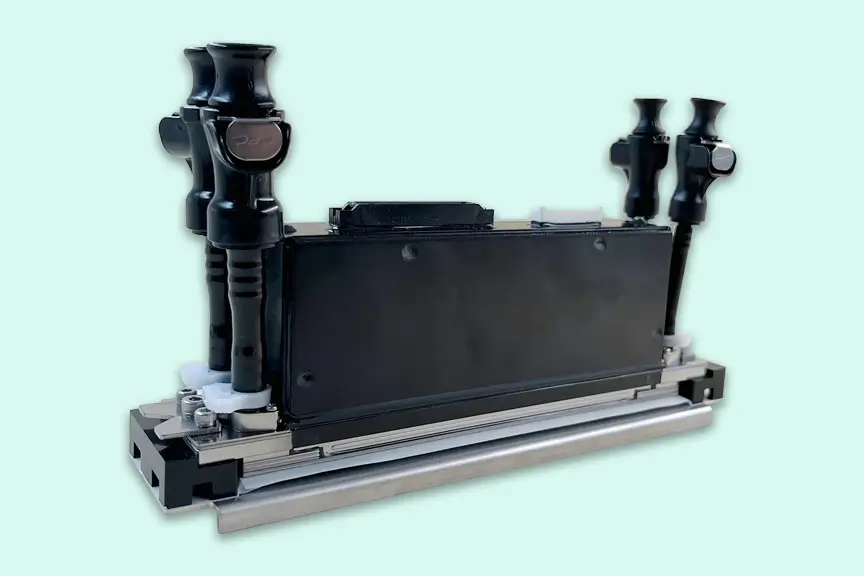

The Kyocera KJ4A-0300 is a high-performance industrial piezoelectric inkjet printhead designed for UV-curable inks and other high-viscosity ink systems used in wide-format and high-speed printing applications such as signage, packaging, and textile printing. It is part of the KJ4A series, which is built with Kyocera’s fine ceramic piezo actuator technology, providing reliable, stable, and high-quality print performance in continuous industrial environments.
This model is a two-channel (dual-colour) printhead with a 300 × 300 dpi native resolution (300 dpi per channel) and a wide print width (~112.35 mm), enabling broader coverage with fewer heads in multi-head arrays. It operates at a maximum drive frequency of 30 kHz, supporting high speed throughput (up to ~158 m/min) while maintaining small droplet accuracy, making it suitable for both single-pass and multi-pass UV printing systems.
